  • VPX and SOSA-aligned rugged systems

    VPX Rugged Systems & SOSA-Aligned Solutions – Dawn VME Products

    High-performance, rugged SOSA alinged enclosures and systems for UAVs
    and mission-critical applications

    Rugged VPX Cube Enclosure

    Type: CCE-3VX3 3U VPX 3-slot Cube, Conduction Cooled
    Compliance: MIL-STD-810G shock/vibration, DO-160E, MIL-STD-461E EMI
    Power: Up to 400W, 6-channel
    Environmental: -40°C to +71°C operating temperature, 95%
    non-condensing humidity
    Built for rugged airborne and ground-based systems.

    CCE-3VX3 Rugged VPX Cube Enclosure for UAVs

    Rugged
    VPX ATR Enclosure

    Type: 3U 6-slot Air Cooled ATR Enclosure
    Compliance: MIL-STD-810G shock/vibration, DO-160E, MIL-STD-461E EMI
    Cooling: Thermal Exchanged Flow™ (TEF) System
    Power: 600W 6-channel intelligent VPX power supply with RuSH™
    monitoring
    Environmental: -40°C to +71°C operating temperature, IP67 sealing,
    95% non-condensing humidity
    Features: Fully sealed internal electronics, configurable backplane
    and I/O via Fabric Mapping Module (FMM)
    Ideal for: UAVs, airborne, and rugged deployed systems

    ATR-5700 Rugged VPX ATR Enclosure for UAVs

    VPX Accessories

    Standards: VITA 46, 48, 65
    Products: Test modules, extenders, rear transition modules, USB
    adapters
    Environmental: MIL-STD-810G shock/vibration compliant designs
    Ideal for rugged VPX-based UAV and defense systems.

    VPX Accessories for Rugged UAV Systems

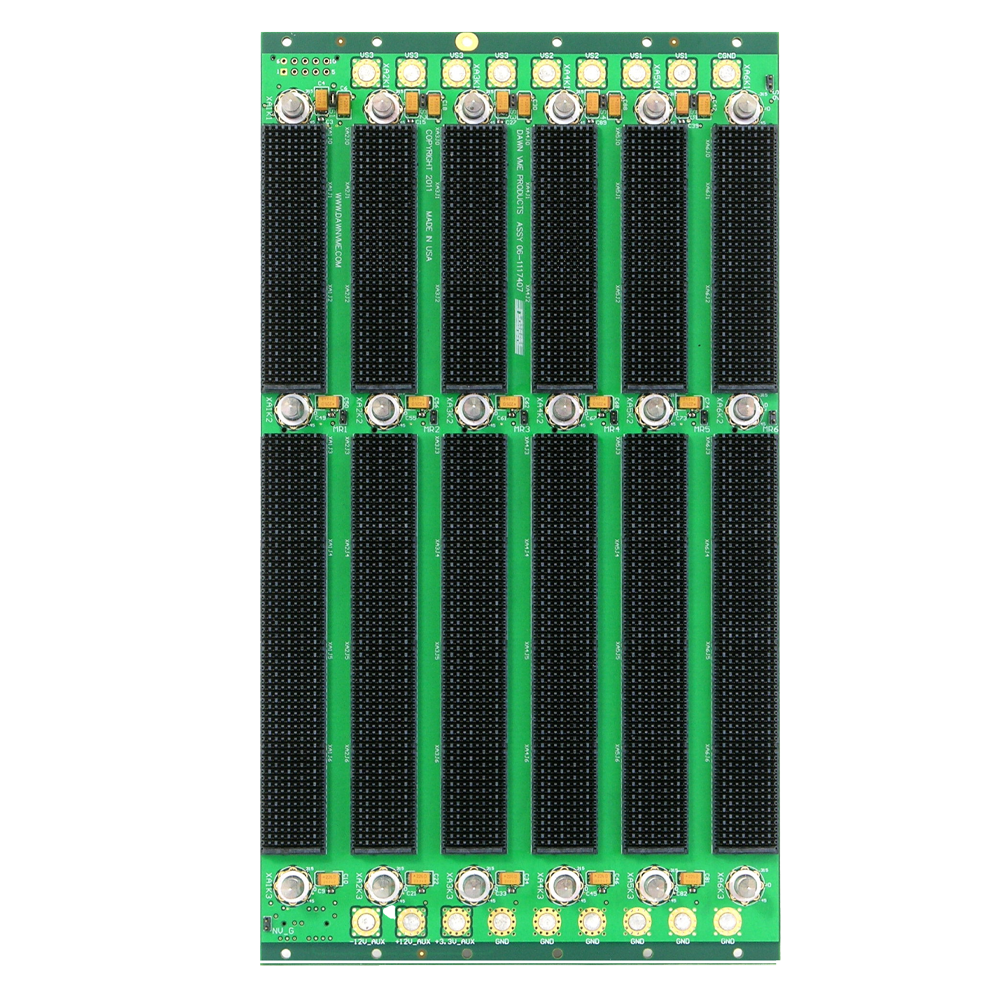

    SOSA-Aligned
    VPX Backplanes

    Form Factors: 3U & 6U
    Profiles: VITA 65, 67.1/2/3, Nano-RF, SOSA
    Environmental: MIL-STD-810G shock/vibration compliant
    Designed for modular open systems architecture (MOSA) and UAV
    integration.

    SOSA-Aligned VPX Backplane for Rugged UAV Systems

    VPX Development Chassis

    Form Factors: 3U & 6U
    Systems: DEV-1290 Table-Top, DEV-4136 6U 6-slot
    Environmental: MIL-STD-810G shock/vibration compliant for testing
    Ideal for SOSA-aligned system development and rugged UAV testing.

    VPX Development Chassis for Rugged UAV Systems

    VPX
    Power Supplies

    Standard: VITA 62
    Features: Embedded RuSH™ monitoring, 6-channel output,
    conduction/air cooled
    Environmental: -40°C to +85°C operating temperature, MIL-STD-810G
    shock/vibration, 95% non-condensing humidity
    Reliable power for rugged VPX and SOSA systems in UAVs and defense
    platforms.

    VPX Power Supply for Rugged UAV Systems

    SpaceVPX Rugged Systems

    Standard: VITA 78
    Environmental: Radiation-tolerant, -40°C to +85°C operating
    temperature, MIL-STD-810G shock/vibration
    Use Case: Radiation-tolerant, fault-tolerant systems for space and
    high-altitude UAVs.

    SpaceVPX Radiation-Tolerant System for High-Altitude UAVs
