MIL-STD Qualified Display Solutions
Rugged Military Displays
USA-built ruggedized flat panel displays for shipboard, airborne, vehicle, and land-based defense applications. NewTec Reps supports standard and custom Epsilon display configurations for MIL-STD programs.
3,000+Units Delivered
20+Years Experience
AS9100DCertified Quality
6.4″-46″+Custom Sizes
Rugged Display Portfolio
Compare rugged military displays for Navy, aerospace, vehicle, and land-based applications, including rack-mount, panel-mount, VESA, touch-screen, optical bonding, high-bright LCD, and form-fit-function replacement options.

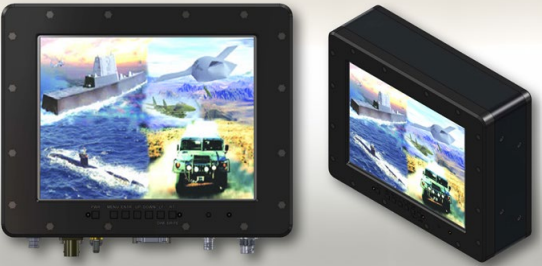

10.4″ Rugged Military Display
REP-10LED-PM
- 1024 x 768 XGA active matrix LCD
- 500 cd/m2 LED backlight, high-bright option
- Bonded anti-reflective protective window
- VGA, DVI-D, and NTSC inputs
- MIL-STD-461E, MIL-STD-167-1, MIL-STD-901D, MIL-STD-810
- IP65 drip proof, 0C to 60C

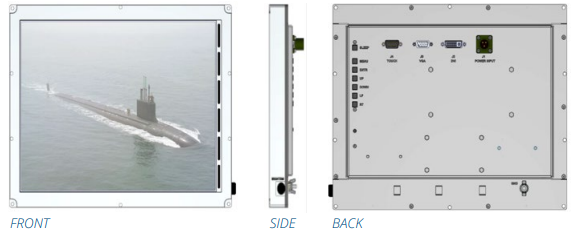

15″ Rugged Military Display
REP-15IFL-115VAC
- 15.0 inch active matrix LCD
- 1024 x 768 XGA resolution
- 800 cd/m2 LED backlight
- Bonded anti-glare protective window
- DVI and VGA inputs
- Optional resistive touch screen

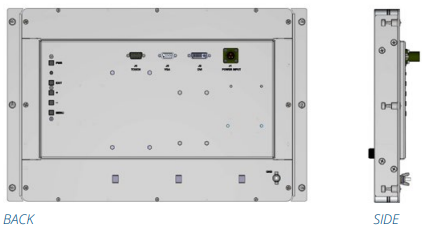

17″ Rugged Military Display
REP-17IFL-115VAC
- 17.0 inch active matrix LCD
- 1280 x 1024 SXGA resolution
- Bonded anti-glare protective window
- DVI and VGA inputs
- MIL-STD-461, MIL-STD-810, MIL-STD-167-1
- IP65 drip proof, -10C to 55C

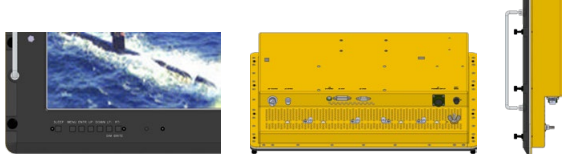

19″ Rugged Military Display
REP-19LCD-RM115
- 19 inch active matrix LCD
- 1280 x 1024 SXGA resolution
- 800 cd/m2 LED backlight
- VGA, DVI, and NTSC inputs
- MIL-STD-167-1, MIL-STD-810, MIL-STD-901D, MIL-STD-461E
- IP65 drip proof, 0C to 60C

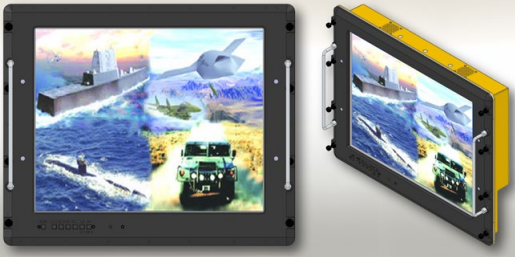

21.5″ Rugged Military Display
REP-21HDW-115TV
- 21.5 inch full HD LCD
- 1920 x 1080 resolution
- Anti-reflective protective window
- Wide viewing angle to 178 degrees
- VGA, DVI-D, and composite video inputs
- MIL-STD shock, vibration, EMI, and environmental support

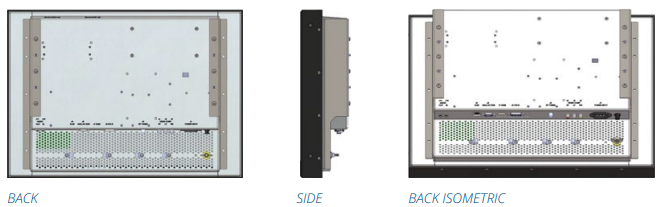

24″ Rugged Military Display
REP-24HDW-10U115TV
- 24.0 inch WUXGA LCD
- 1920 x 1200 resolution
- 750 cd/m2 LED backlight
- Bonded anti-reflective protective window
- VGA, DVI-D, and composite video inputs
- MIL-STD-461F, MIL-STD-167-1, MIL-STD-901D, MIL-STD-810
Airborne & Vehicle Displays
MIL-STD-810 Qualified
- Fixed-wing, rotary-wing, vehicle, and land-based variants
- Aircraft carrier and submarine qualified display experience
- MIL-STD-810 methods for temperature, rain, salt fog, sand and dust
- MIL-STD-167-1 vibration support
- Custom EMI and EMC shielding
- Foreign Military Sales program experience
Custom Rugged Display Solutions
6.4″ to 46″+ Build-to-Requirement
- Custom sizes from 6.4 inches to 46 inches and beyond
- Form-fit-function replacement capability
- 3D modeling from concept to realization
- VESA, rack, panel, bulkhead, and console mounting
- Panoramic display configurations
- Touch-screen integration available
Lifecycle Support & Repair
In-Service Upgrade Programs
- Repair and refurbishment services
- Technology insertion for aging displays
- Spares kitting and EOL component mitigation
- Support for fielded military display programs
- Build-to-print and requirements evolution support
- On-time delivery and supplier quality focus
Standard RFPD Capabilities
Display & Video
10.4 inch to 24 inch standard displays, custom sizes from 6.4 inch to 46 inch and beyond, high-resolution LCD options, VGA, DVI-D, NTSC, composite video, optional 2K and 4K support, and enhanced haze/fog video processing.
Mechanical & Optical
Rack, panel, console, bulkhead, and VESA mounting options with optically bonded anti-reflective protective windows, optional touch-screen overlays, panoramic configurations, and build-to-requirement packaging.
Environmental & Compliance
MIL-STD-810 environmental methods, MIL-STD-901D shock, MIL-STD-167-1 shipboard vibration, EMI/EMC compliance, IP65 drip-proof options, AS9100D and ISO 9001:2015 quality support.
Rugged Military Display Technology Overview
Epsilon Systems has designed and manufactured ruggedized flat panel displays for U.S. military and defense customers since 2002. These RFPD solutions support aircraft carriers, submarines, aircraft, military vehicles, and land-based installations where long-life support, qualification discipline, and display readability matter.
Displays can be configured for shock, vibration, EMI/EMC, temperature, humidity, salt fog, rain, sand and dust, anti-reflective optical bonding, touch input, and lifecycle support. NewTec Reps represents Epsilon Systems in the Mid-Atlantic and can help review standard products, custom build-to-print needs, and upgrade paths for fielded display programs.
Ready to Discuss Your Rugged Display Requirements?
Contact NewTec Reps to review standard RFPD configurations, custom display requirements, repair programs, or lifecycle support for fielded military displays.
Contact NewTec Reps
